Description

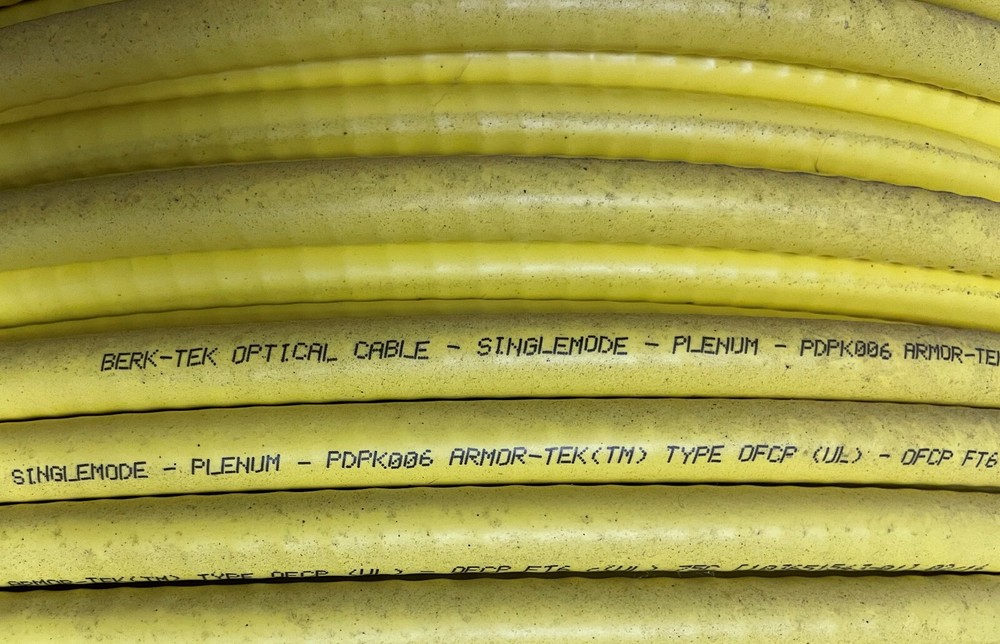

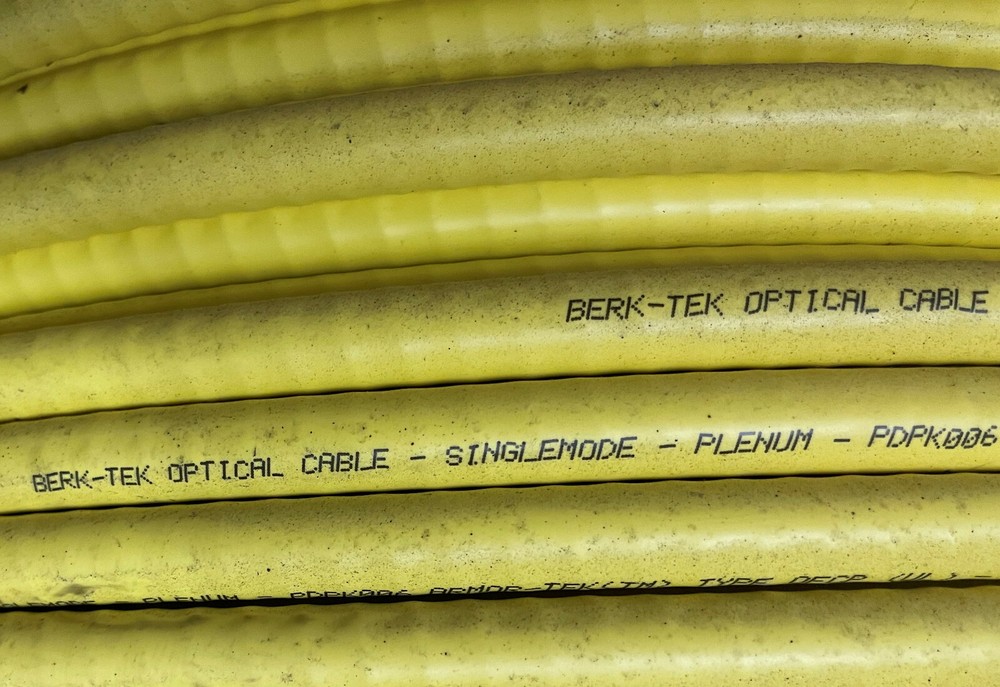

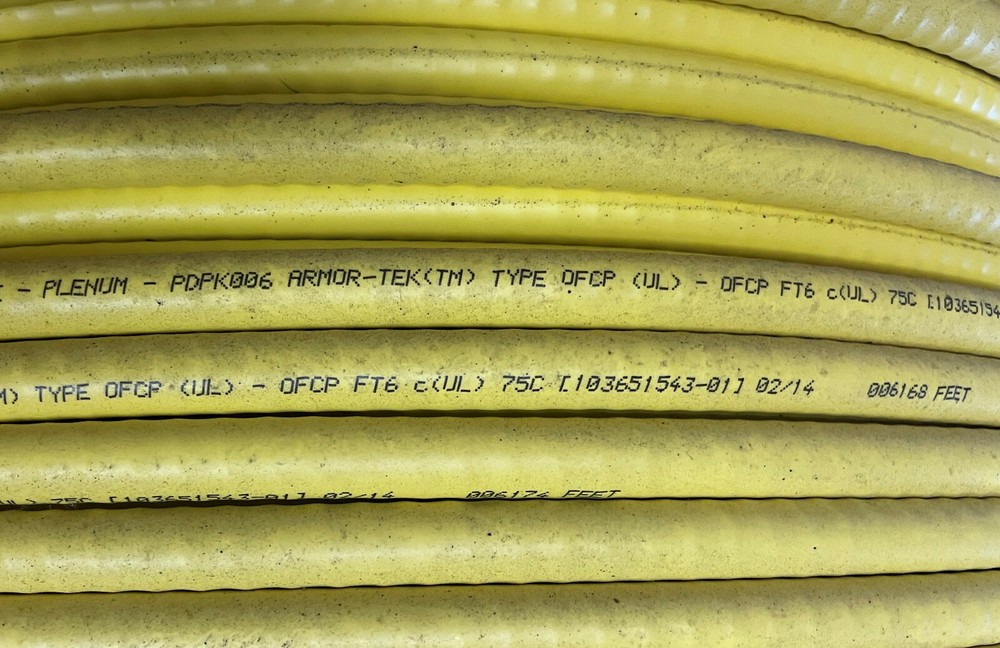

NO SPOOL IS INCLUDED. I measured over 1100ft. This was a spool of 7000ft and I got the last of it. I took it off the spool for shipping. Its one continuous length and I was careful not to kink it. This weighs over 100lbs. 32x32x12 and 110lbs with the box that will be required. I found the specs, I THINK. All the printing on the cable itself is shown in the photos. PDPK006AB0707 Construction characteristics Fiber optic type: SM (G.652D) Type of cable : Tight Buffered (TB) Outer sheath Plenum Sheath colour: Yellow Armour type : Aluminum Interlock Dimensional characteristics Number of optical Fibres: 6 Nominal outer diameter : 0.495 in Nominal outer diameter : 12.6 mm Approximate weight : 78 lb/kft Approximate weight : 116 kg/km Transmission characteristics Optical performance: AB (Single-mode, OS2) Attenuation, max.: 1310 nm (cabled) 0.7 dB/km Attenuation, max.; 1550 nm (cabled) 0.7 dB/km Mechanical characteristics Maximum installation tension : 100 lb Maximum installation tension: 445 N Max. Load. Long Term (lbs): 30.0 lb Max. Load. Long Term : 133.0 N Impacts per TIA/EIA FOTP-25: 2 at 8.83 N-m Crush resistance per TIA/EIA FOTP-41 : 440 N/cm Cable Flexibility per TIA/EIA FOTP-104: 100 cycles Usage characteristics Minimum Bending Radius - Install 7.4 in Minimum Bend Radius - Install 18.9 cm Minimum Bending Radius - LongTerm 5 in Minimum Bending Radius - LongTerm 12.6 cm Operating temperature, range -20 .. 75 °C Ambient installation temperature, range 0 .. 75 °C Storage temperature, range -40 .. 85 °C Field of application: Indoor
